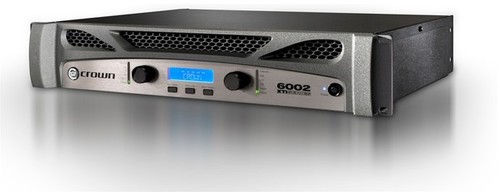

Crown XTi 6002 2-Channel Power Amplifier Details There’s no debate – when you choose Crown’s XTi 2 Series, you’re choosing one of the most powerful and innovative amplifiers on the market today. That’s because the all-new XTi 2 Series amps continue to set the standard for unmatched performance and value, delivering the goods night after night without breaking a sweat.
Crown XTi 6002 2-Channel Power Amplifier Features Peakx Plus Limiters provide the ultimate in system performance and protection by allowing full control over threshold, attack, and release Enhanced Subharmonic Synth section provides user control over frequency, gain and filter type for system-specific tuning 3 User-defined fan mode controls – normal, early and fullspeed – for matching fan performance to a specific application New system monitoring provides software visibility of AC line voltage and power supply temperature Integrated cast-aluminum handles for easy handling and enhanced durability Locking power cord clip provides a secure connection between the amplifier and power cord Updated HiQnet Band Manager and System Architect control software Increased number of presets to a total of 50; 49 of which are user definable
Crown XTi 6002 2-Channel Power Amplifier Specifications Integrated Processing Input EQ: 6 parametric filters per channel with adjustable Q, ±15 dB boost/cut. Also adjustable high and low shelving filters. This 8-filter EQ section can be bypassed. Crossover Filters: Highpass and Lowpass per channel. Butterworth 6/12/18/24 dB per octave. Linkwitz-Riley 24/48 dB per Octave. Also includes ± 15 dB bandpass gain and polarity control. Output EQ: 8 parametric filters per channel with adjustable Q, ±15 dB boost/cut. This 8-filter EQ section can be bypassed. Delay: For signal alignment of driver; 50 mS of total delay. SubHarmonic Synth: Takes the low-frequency content of the input signal and “synthesizes” a new signal that is the same as the input signal but one octave lower. The new synthesized signal is then mixed with the original signal to create the effect. New: Users now have control over frequency, gain, and filter type. Peakx Plus Limiter: User defeatable limiter that allows users to control Threshold, Attack, and Release times. Presets: 50 total presets, 49 of which are user-definable. Controls Level: Two front-panel rotary level controls, one for each channel Power Switch: On/Off switch applies AC power to the amplifier Sel/Prev/Next Buttons: Three buttons near the LCD screen that are used to access menu items and front panel lockout LCD Screen: Backlit liquid crystal display that shows preset and processing status
Input/Output Connectors Input Connectors: XLR, one per channel Link/Out Connector: Loop-thru signal from input connector for linking another amplifier, one per channel. Output Connectors: Two Neutrik Speakon NL4MP output connectors. Channel-1 Speakon is wired with Ch. 1 and Ch. 2 outputs for use with optional single 4-conductor cable. Two binding post outputs (in parallel with Speakon connectors). HiQnet USB Connector: Type B, connects to HiQnet network. Construction Chassis: Steel Front Panel: Cast-aluminum Cooling: Proportional speed fan with front-to-rear airflow. Dimensions: 19″ (W) x 3.5″ (H) x 16.2″ (D) Net Weight: 24.0 lbs (10.9kg)
