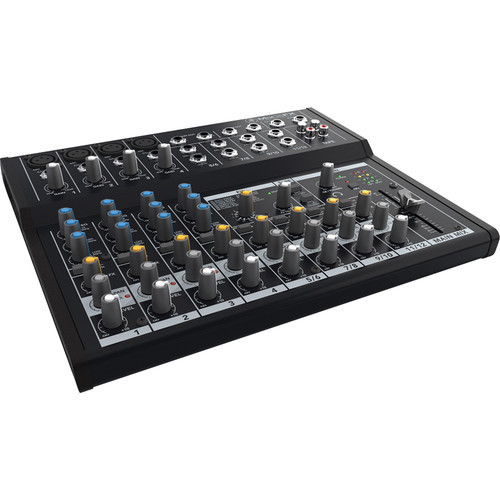

Mackie Mix12FX mixer

商品編號 00797
HK$0.00
有庫存
1
產品資訊



PRODUCT HIGHLIGHTS

  • 4 Mic/Line Inputs with 3-Band EQ & HPF
  • 4 Stereo 1/4″ Line Inputs
  • Stereo RCA Tape Inputs & Outputs
  • Pan, Level & Overload Indication
  • 48V for Condenser Mics
  • 12 FX – Reverbs, Choruses & Delays
  • Dedicated Stereo RCA Inputs
  • Headphone & Stereo Control Room Outs
  • Compact & Portable

SPECIFICATIONS

Noise (20 Hz – 20 kHz bandwidth, 150 ohm source impedance, EIN)

All outputs, master levels and channel levels off –100 dBu

All outputs, master levels unity, all channel levels off –90 dBu

All outputs, master levels unity, 1 channel level unity –85 dBu

THD+N (20 Hz – 30 kHz bandwidth)

Mic input to main output <0.25% @ +4 dBu output

Attenuation and Crosstalk (20 Hz – 20 kHz bandwidth)

Inputs to outputs @1 kHz –85 dB

Main mix off @1 kHz –75 dB

Frequency Response Mic Input to Any Output (Gain at Unity): +0, –1 dB, 20 Hz to 30 kHz
Equivalent Input Noise –122 dBu, (mic in to insert send out, max gain)
Common Mode Rejection Ratio 1 kHz better than –70 dB, (mic in to insert send out, max gain)
Maximum Level Mic Inputs (XLR): +19 dBu

All Other Inputs: +21 dBu

All Outputs: +21 dBu

Impedance Mic In: 3.8 kohms

All Other Inputs: 10 kohms or greater

Tape Out : 1 kohms

Phones: 22 ohms

All Other Outputs: 120 ohms unbalanced, 240 ohms balanced

Equalization High Shelving: ±15 dB @ 12 kHz

Mid Peaking: ±15 dB @ 2.5 kHz

Low Shelving: ±15 dB @ 80 Hz

Low Cut Filter: 18 dB/octave, –3 dB @ 75 Hz

Power Requirements Power Connection: 2-pin DC connector [US], 3-pin DC connector [EU]

Input: 120 VAC, 60 Hz [US], 230 VAC, 50/60 Hz [EU]

Output: 18 VAC, 1000 mA

Dimensions 2.1 x 11.7 x 9.6″ (53 x 297 x 244 mm)
Weight 3.7 lb (1.7 kg)
