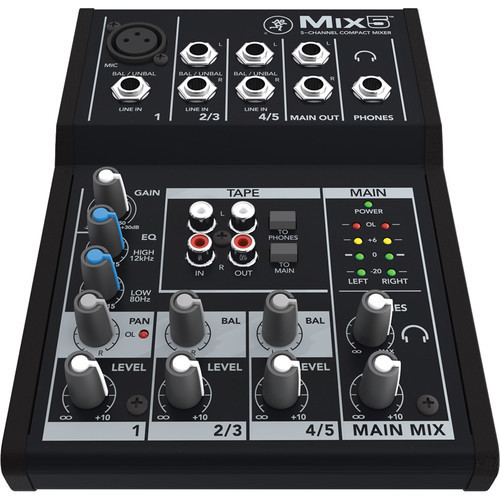

Mackie Mix5 (5 channel compact mixer)

00795

Mackie Mix5 (5 channel compact mixer) 00795



PRODUCT HIGHLIGHTS

  • 1 Mic/Line Inputs with 3-Band EQ
  • 2 Stereo 1/4″ Line Inputs
  • Stereo RCA Tape Inputs & Outputs
  • Pan, Level and Overload Indication
  • Dedicated Stereo RCA Inputs
  • Headphone and Stereo Control Room Outs
  • Compact and Portable



SPECIFICATIONS

Noise(20 Hz – 20 kHz bandwidth, , 150 ohm source impedance, EIN)

All outputs, master levels and channel levels off –100 dBu

All outputs, master levels unity, all channel levels off –90 dBu

All outputs, master levels unity, 1 channel level unity –85 dBu

THD+N(20 Hz – 30 kHz bandwidth)

Mic input to main output <0.25% @ +4 dBu output

Attenuation and Crosstalk(20 Hz – 20 kHz bandwidth)

Inputs to outputs @1 kHz –85 dB

Main mix off @1 kHz –75 dB

Frequency ResponseMic Input to Any Output (Gain at Unity): +0, –1 dB, 20 Hz to 30 kHz
Equivalent Input Noise-125 dBu, (mic in to insert send out, max gain)
Common Mode Rejection Ratio1 kHz better than –70 dB, (mic in to insert send out, max gain)
ImpedanceMic In: 2 kohms

All Other Inputs: 10 kohms or greater

Tape Out : 1 kohms

Phones: 22 ohms

All Other Outputs: 120 ohms unbalanced, 240 ohms balanced

Maximum LevelMic Inputs (XLR): +19 dBu

Aux Return In: +16 dBu

All Other Inputs: +21 dBu

All Outputs: +21 dBu

EqualizationHigh Shelving: ±15 dB @ 12 kHz

Mid Peaking: ±15 dB @ 2.5 kHz

Low Shelving: ±15 dB @ 80 Hz

Low Cut Filter: 18 dB/octave, –3 dB @ 75 Hz

Power RequirementsPower Connection: 2-pin DC connector [US], 3-pin DC connector [EU]

Input: 120 VAC, 60 Hz [US], 230 VAC, 50/60 Hz [EU]

Output: 18 VAC, 600 mA

Dimensions1.7 x 5.5 x 7.7″ (43 x 140 x 196 mm)
Weight1.4 lb (0.6 kg)
HK$0 In stock
