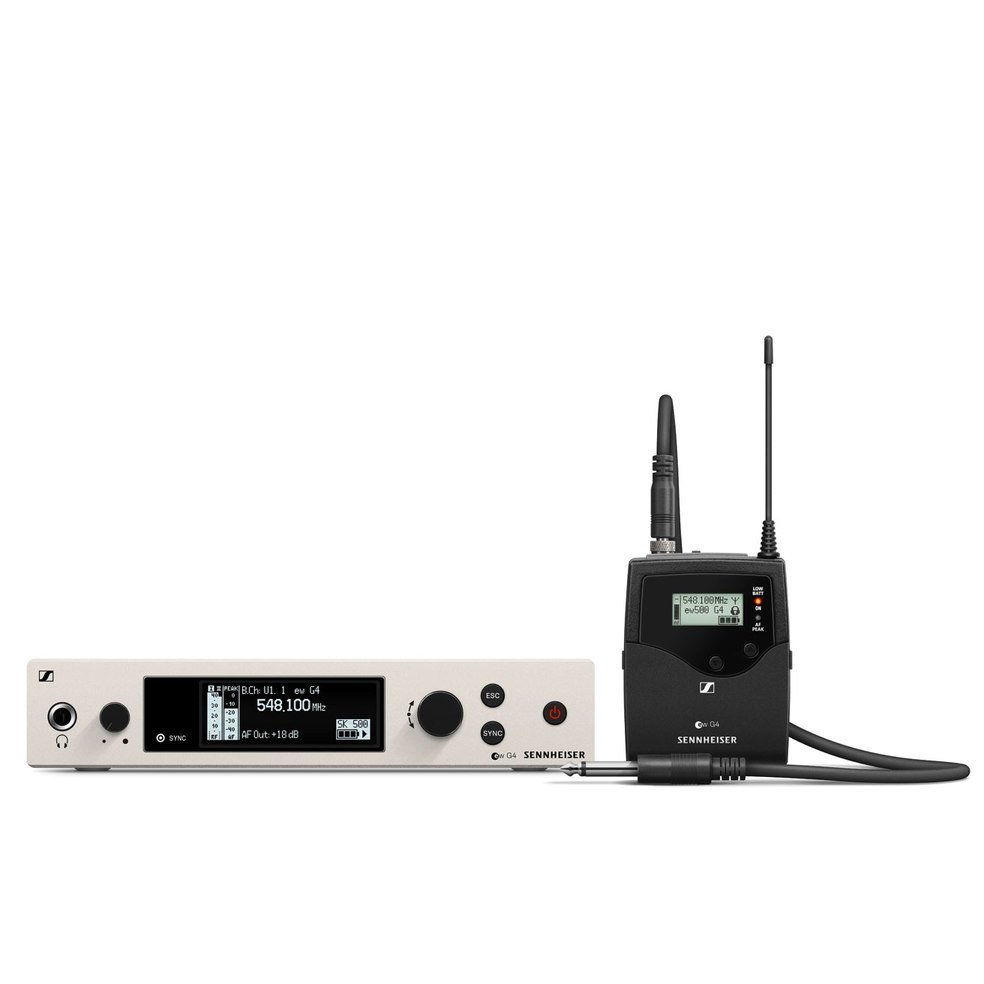

Sennheiser EW 500 G4-Ci1 wireless instrument set

商品編號 01525
HK$0.00
有庫存
1
產品資訊

True diversity half-rack receiver in a full-metal housing with intuitive OLED display for full control

Overview

The pro‘s choice. Renowned sound engineers rely on ew 500 G4‘s flexibility, especially when handling multi channel settings on the world‘s music stages. Up to 88 MHz bandwidth, up to 32 channels. Ethernet connection for Wireless Systems Manager (WSM) control software included for advanced frequency coordination in multi channel setups.
The pro‘s choice for perfectly balanced but upfront guitar and bass. Powerful bodypack transmitter and Ci1 instrument cable for unforgettable performances.

Features

  • True diversity half-rack receiver in a full-metal housing with intuitive OLED display for full control
  • Easy and flexible wireless synchronization between transmitter and receiver via infrared
  • Up to 32 compatible channels
  • Up to 88 MHz bandwidth with 3520 selectable frequencies, fully tunable in a stable UHF range
  • Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups
  • High RF output power (up to 50 mW, adjustable in three steps 10/30/50) depending on country regulations

What’s in the box?

  • EM 300-500 G4 true diversity receiver
  • SK 500 G4 bodypack transmitter
  • Ci 1 instrument cable
  • 2 AA batteries
  • GA 3 rackmount set
  • power supply
  • 2 rod antennas
  • quick guide
  • safety guide
  • manufacturer declaration sheet

Technical Data

EM 300-500 G4

  • Frequency range
    AS: 520 – 558 MHz
    GBw: 606 – 678 MHz
    Gw: 558 – 626 MHz
    Bw: 626 – 698 MHz
    Cw: 718 – 790 MHz
    Dw: 790 – 865 MHz
    Aw+: 470 – 558 MHz
    Gw1: 558 – 608 MHz
  • Dimensions
    Approx. 202 x 212 x 43 mm
  • Compander
    Sennheiser HDX
    • THD, total harmonic distortion
      ≤ 0.9 %
    • Weight
      Approx. 980 g
    • Audio output
      6.3 mm jack socket (unbalanced): +12 dBu
      XLR socket (balanced): +18 dBu
    • Signal-to-noise ratio
      ≥ 115 dBA
    • Switching bandwidth
      up to 88 MHz
    • Peak deviation
      ±48 kHz
    • Nominal deviation
      ±24 kHz
    • Modulation
      Wideband FM
    • Power supply
      12 V DC
    • Antenna connector
      2 BNC sockets
    • Current consumption
      350 mA
    • Adjacent channel rejection
      Typically ≥ 75 dB
    • Intermodulation attenuation
      Typically ≥ 70 dB
    • Receiving frequency
      Max. 3520 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
    • RF sensitivity
      < 2.5 μV for 52 dBA eff S/N
    • Squelch
      5 to 25 dBμV in steps of 2 dB
    • Equalizer
      Preset 1: Flat
      Preset 2: Low Cut (-3 dB at 180 Hz)
      Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
      Preset 4: High Boost (+6 dB at 10 kHz)
    • Temperature Range
      -10 °C to +55 °C
    • Receiver Principle
      True diversity
    • Blocking
      ≥ 75 dB
